HDPE Bend

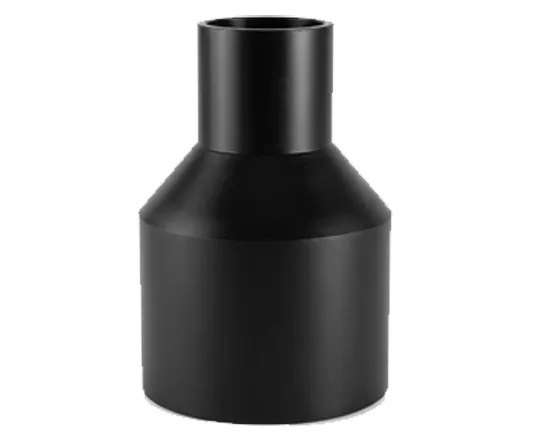

HDPE Reducer

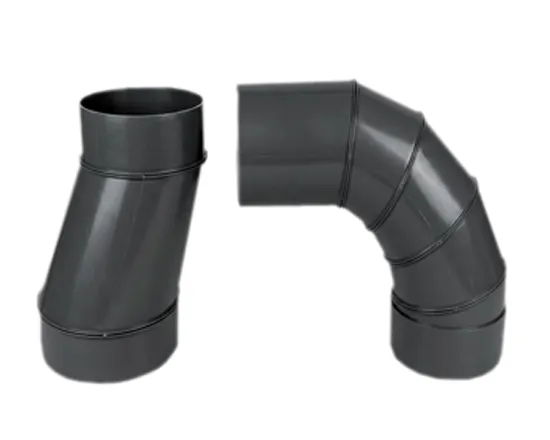

HDPE Reducing Bend

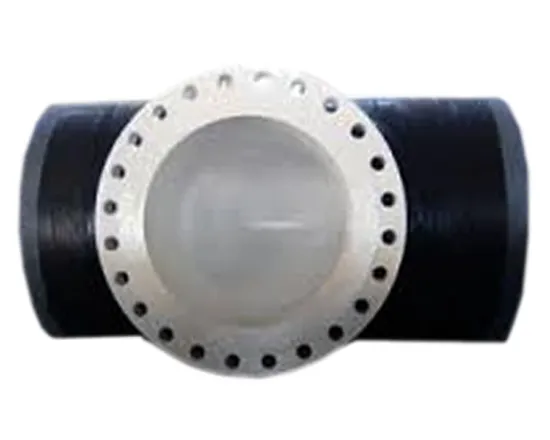

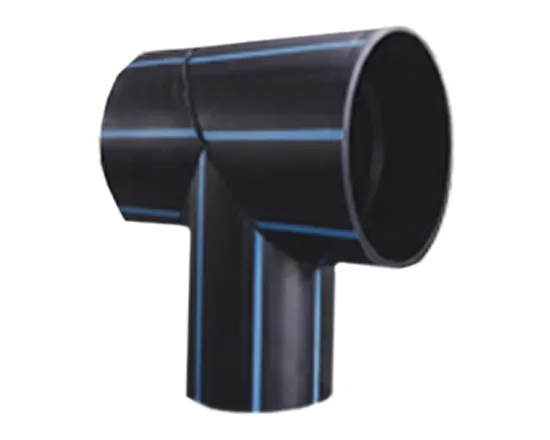

HDPE-T

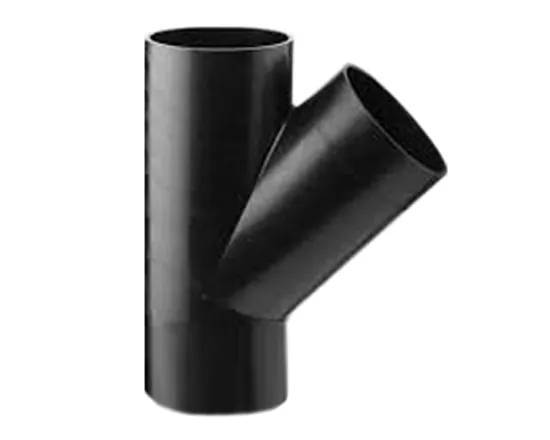

HDPE Y-piece

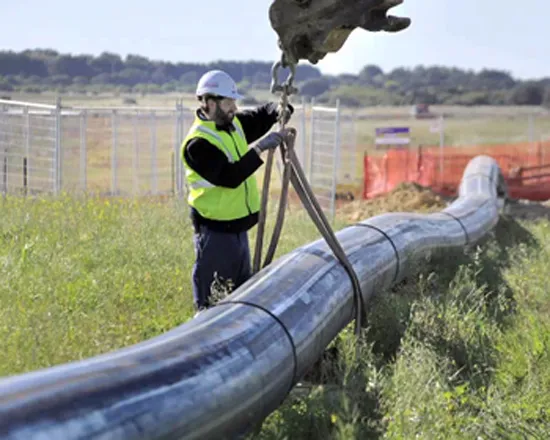

HDPE Pipe

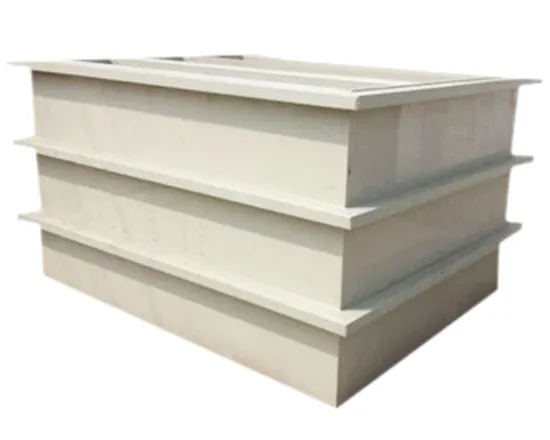

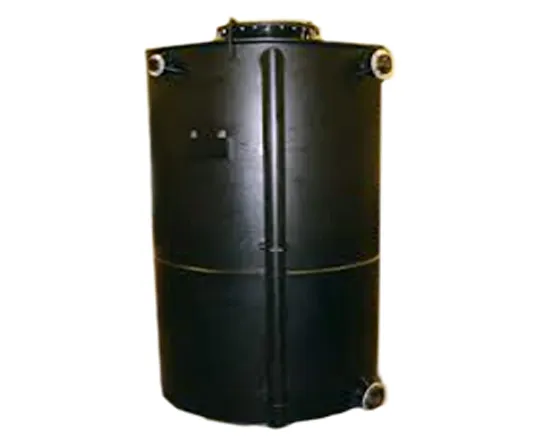

HDPE Welded Tank

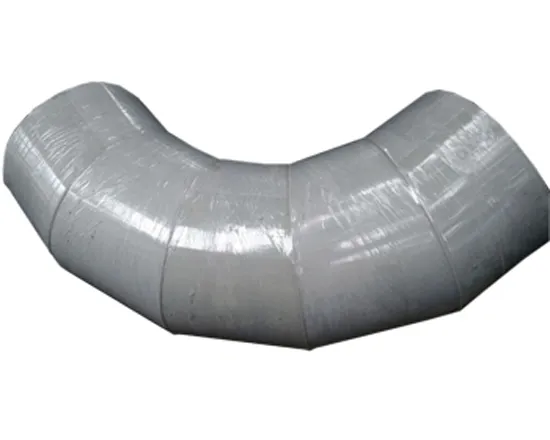

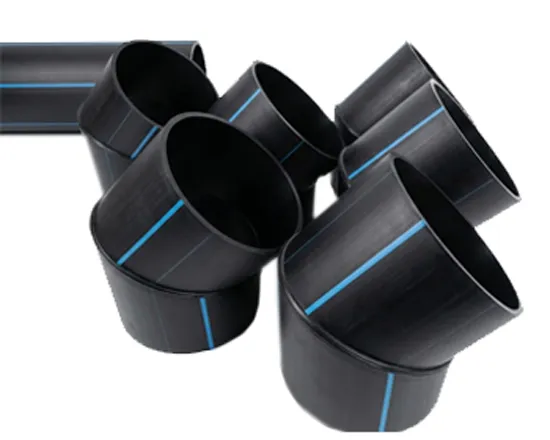

HDPE Bend Welded
We are widely reckoned as one of the noteworthy names of the industry by offering superb quality gamut of Welded Pipes. The offered products are manufactured by using highest quality raw materials that are sourced from the official vendors of the market. Designed as per the industrial standards, these tubes are available in diverse specifications. Moreover,our valued clients can avail these tubes from us.

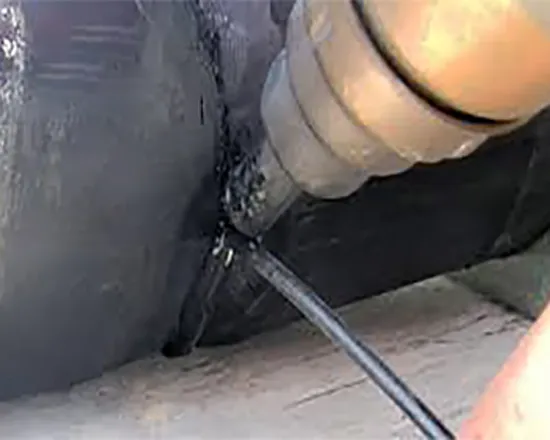

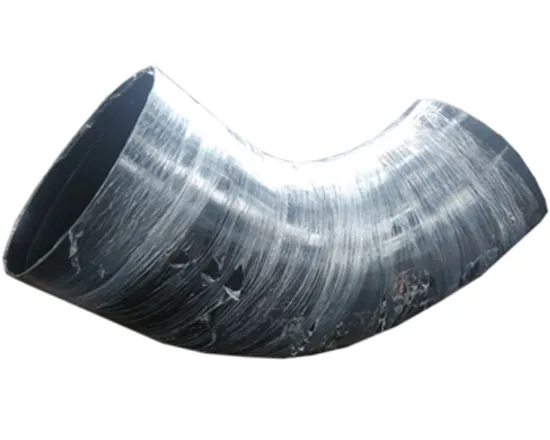

We are an esteemed organization engaged in providing an extensive range of quality PP Welded Pipes with high quality materials with assurance of high reliability, stability, strength and long lasting features which we have in extensive demand in the market. We are well known in the market for our quality products in affordable prices and on time deliveries.
| Bends | ||||||
|---|---|---|---|---|---|---|
| Size | 20mm. to 160 mm. | |||||
| Material | Polypropylene, HDPE | |||||

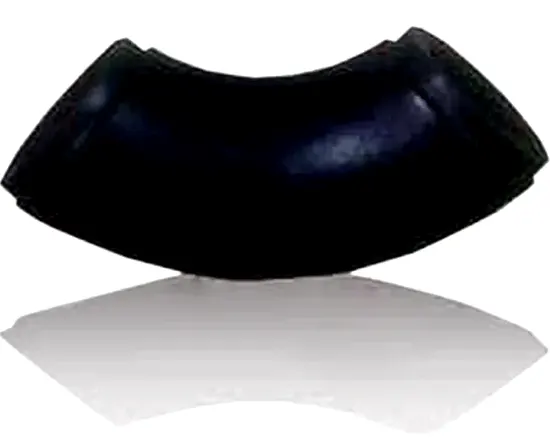

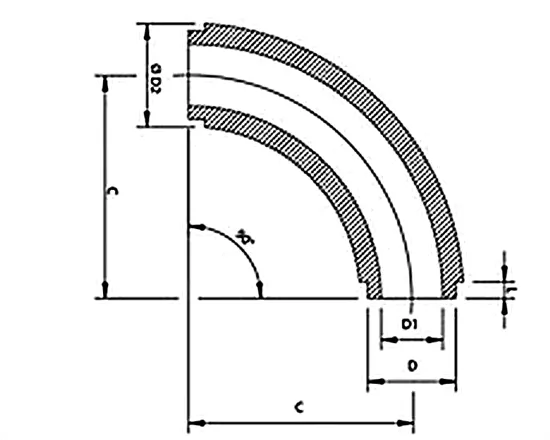

| Important Parameters of bend butt weld | ||||||
| Size in mm | C | D | D1 | D2 | L | |
| 20 | 1/2" | 35.5 | 21 | 14 | 23 | 3 |
| 25 | 3/4" | 40 | 25 | 19 | 28 | 4 |
| 25 | 1" | 40 | 25 | 19 | 28 | 4 |
| 40 | 1¼" | 60 | 40 | 29 | 43 | 6 |
| 50 | 1½" | 71 | 50 | 37 | 54 | 8 |
| 63 | 2" | 80 | 63 | 47.5 | 65 | 10 |
| 75 | 2½" | 90 | 75 | 59 | 78 | 12 |
| 90 | 3" | 109 | 90 | 73 | 95 | 14 |
| 110 | 4" | 135 | 110 | 88 | 114 | 15 |
| 125 | 5" | 148.5 | 125 | 100 | 131 | 11 |
| 140 | 5½" | 166 | 140 | 110 | 146 | 14 |
| 160 | 6" | 218 | 160 | 135 | 168 | 15 |
| 200 | 8" | 270 | 200 | 170 | 206 | 16 |
| 225 | 9" | 292 | 225 | 188 | 231 | 18 |
| 250 | 10" | 365 | 250 | 212 | 268 | 20 |
| 315 | 12" | 266 | 315 | 267 | 321 | 22 |
